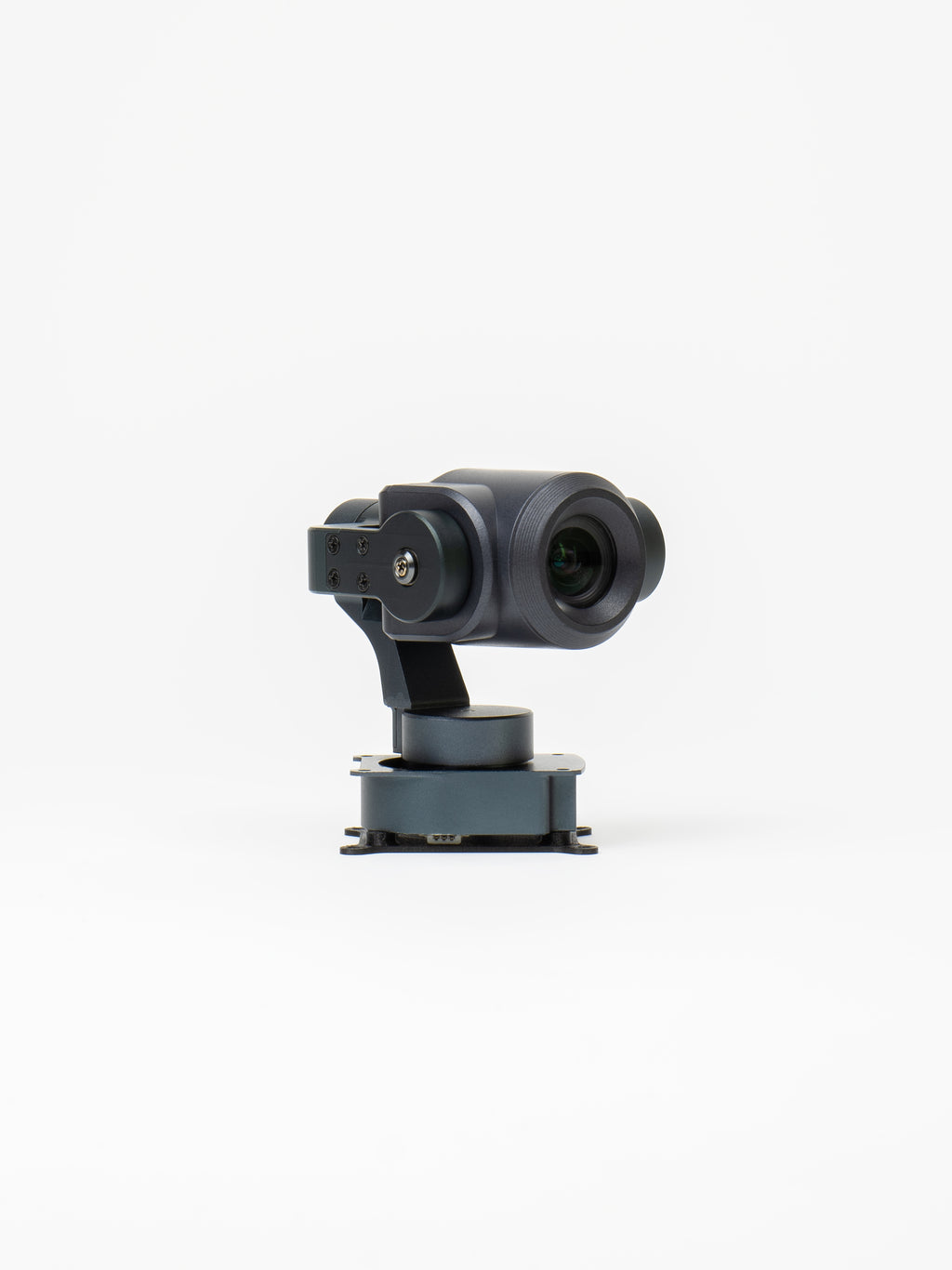

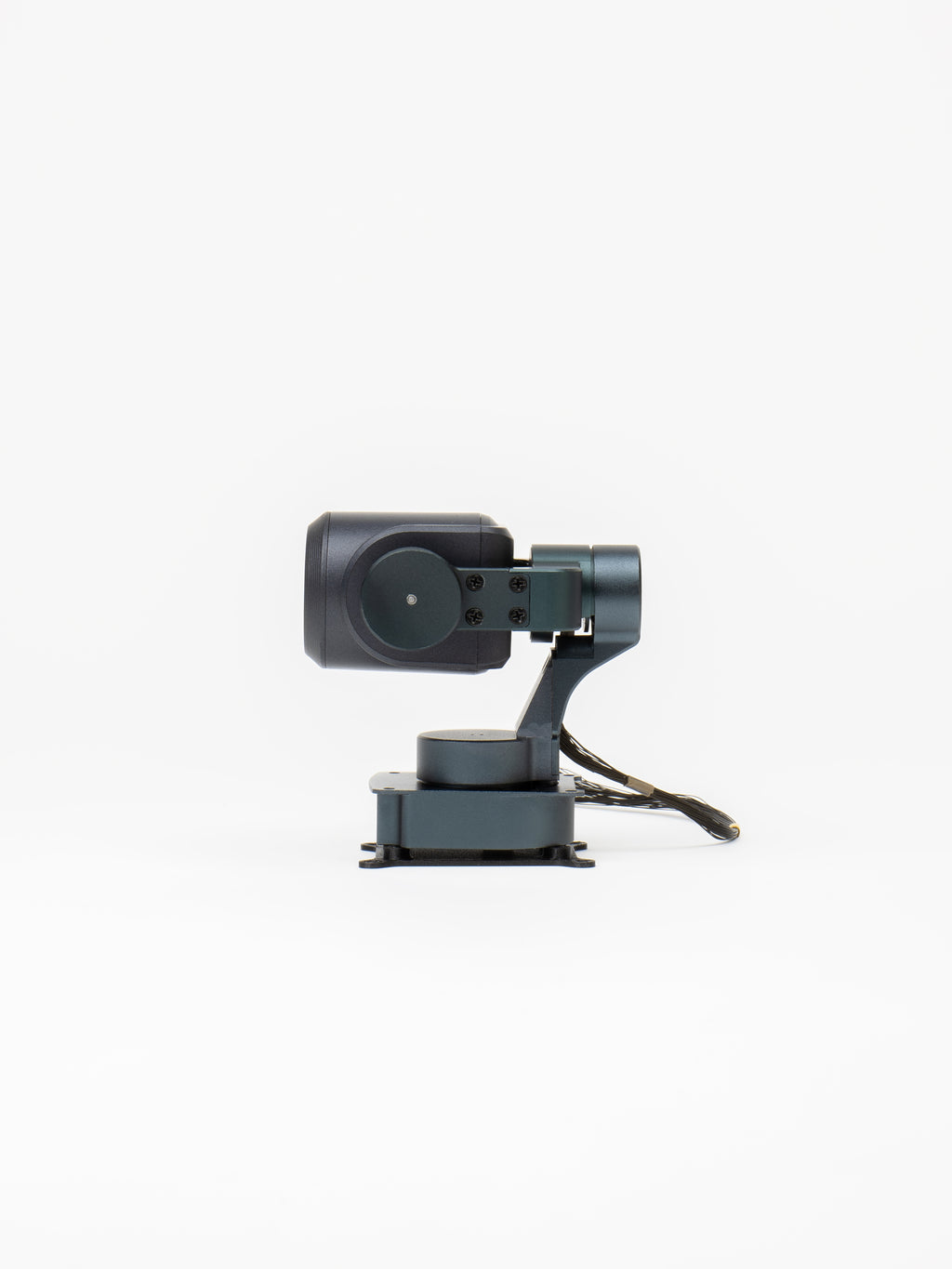

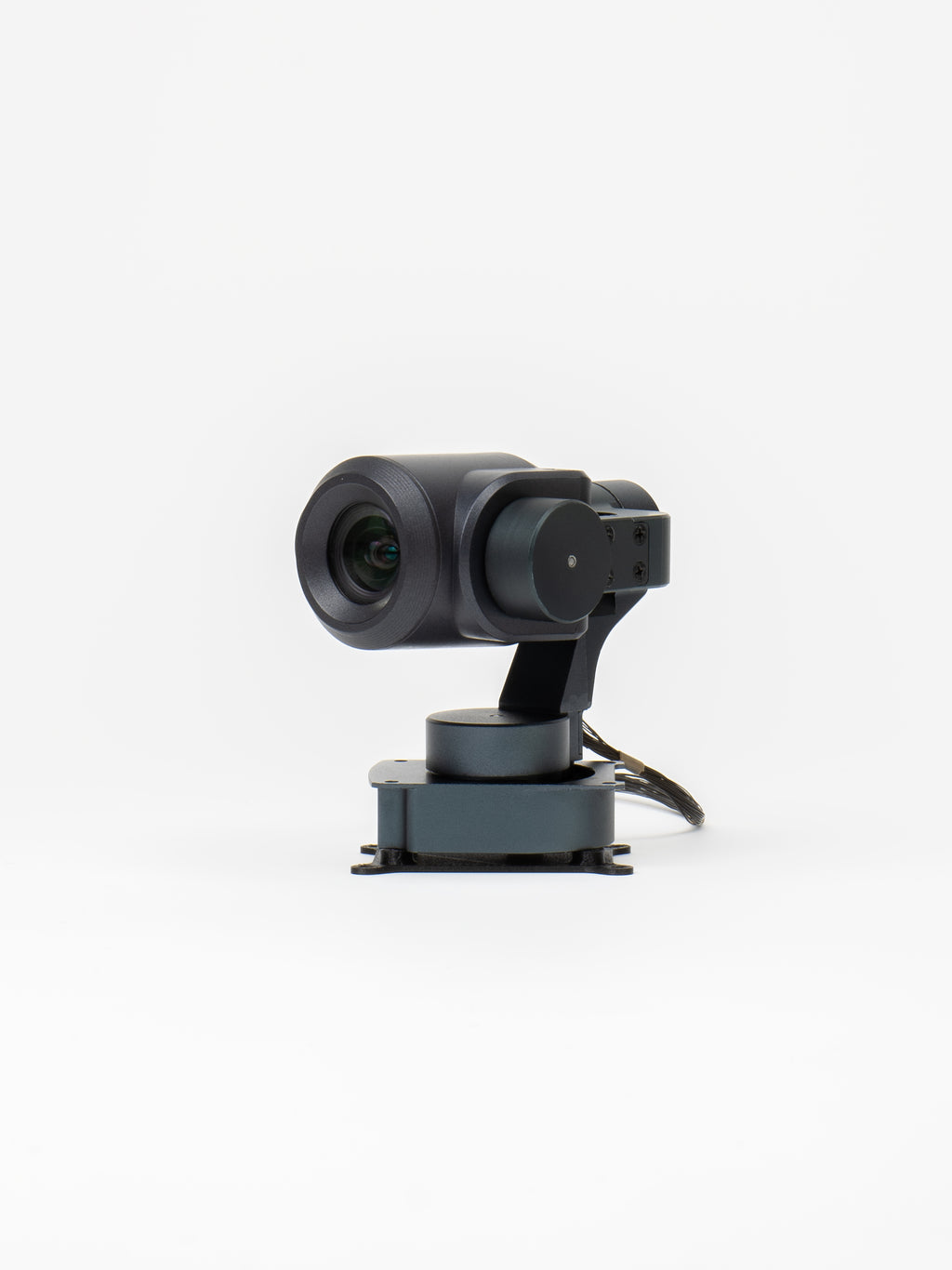

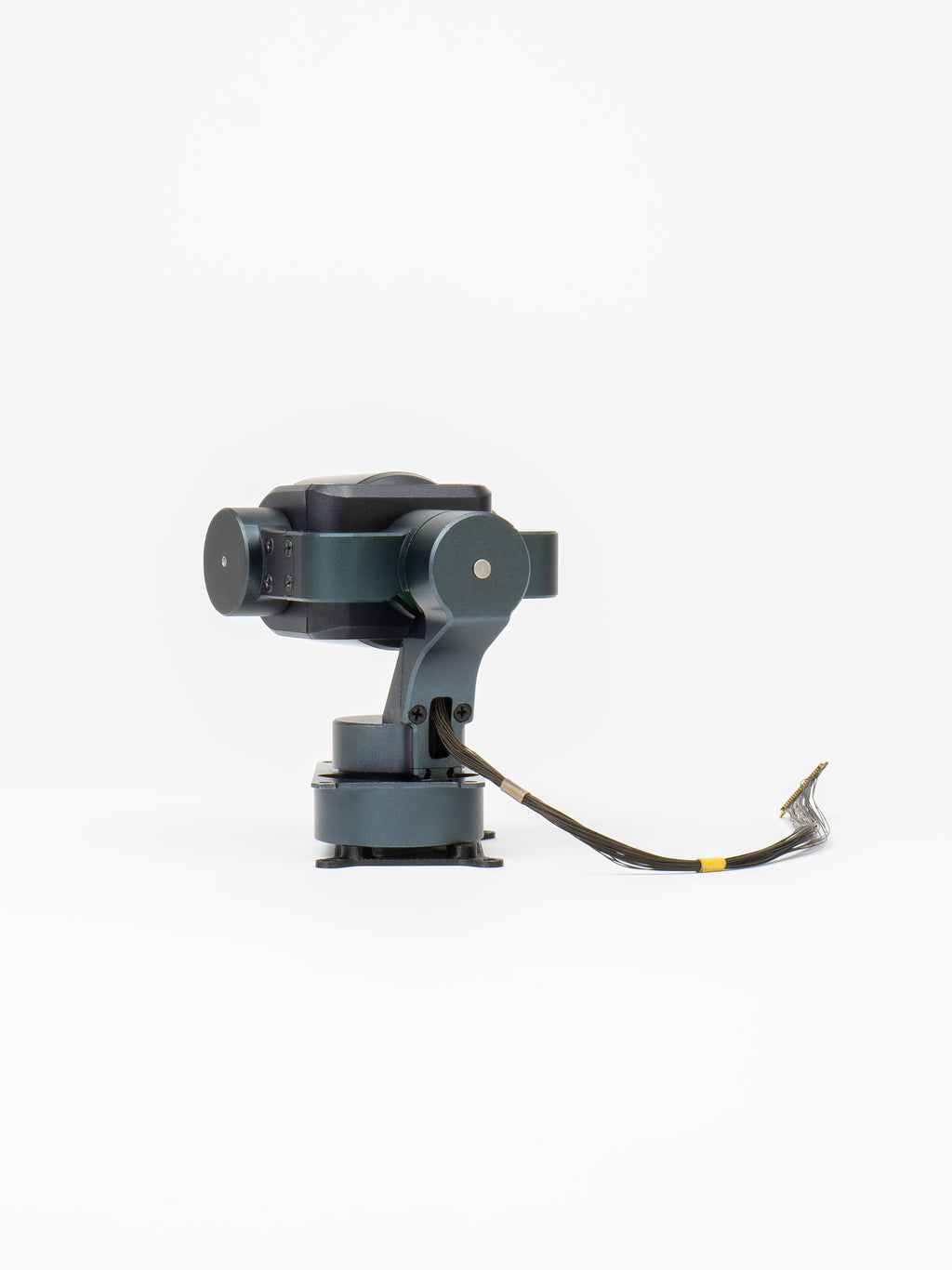

Three-Axis Photoelectric Pod V1 mini micro
$300.00
The V1 mini micro is an ultra-lightweight and compact three-axis photoelectric pod. It integrates a 2K high-definition camera, supports H.265 encoding and RTSP stream output. A single Ethernet port handles both video transmission and control. Its wide voltage input allows direct integration with various UAV platforms, making it an ideal choice for industrial drone applications.
Product Parameters
-Video Output/Control Interface: Ethernet Port
-Operating Voltage: 7.2V ~ 72V
-Operating Current: 210mA
-Operating Environment Temperature: -10°C ~ +60°C
-Weight: 61g
-Dimensions (L*W*H): 51mm * 43.3mm * 61.7mm
-Controllable Angle Range:
- Pitch Axis: -90° ~ +10°
- Azimuth Axis: -90° ~ +90°
- Roll Axis: -45° ~ +45°
-Lens Sensor: 1/2.7"
-Lens Focal Length: EFL=2.4mm, f=3.38mm ~ 14.41mm
-Effective Pixels: 2MP
-Video Transmission Resolution: 1080P
-Video Encoding/Output: H.265 / RTSP Stream
-Local Recording Resolution: 2K
-Photo Resolution: 2K
-Storage Format: Video(MP4), Photo(JPG)
-Supported Memory Card: MicroSD (max 32GB, FAT32 format)
-Key Features: Ceiling/Wall-mount Mode, Global Centering, One-touch Downward, Yaw Recentering
Applicable Scenarios
Optimized for UAV applications, it is perfectly suited for:
-Power & Energy Inspection: Close-range observation and filming of high-voltage towers, photovoltaic power stations, and wind farms.
-Mapping & Surveying: High-precision 2D/3D modeling data acquisition with UAVs.
-Security & Surveillance: Aerial patrols, security for large events, and real-time monitoring for rapid emergency response.
-Search & Rescue (SAR): Searching, surveillance, and information relay in complex environments to aid rescue operations.
-Agriculture & Environmental Protection: Crop health monitoring, land resource surveys, and environmental change assessment.
