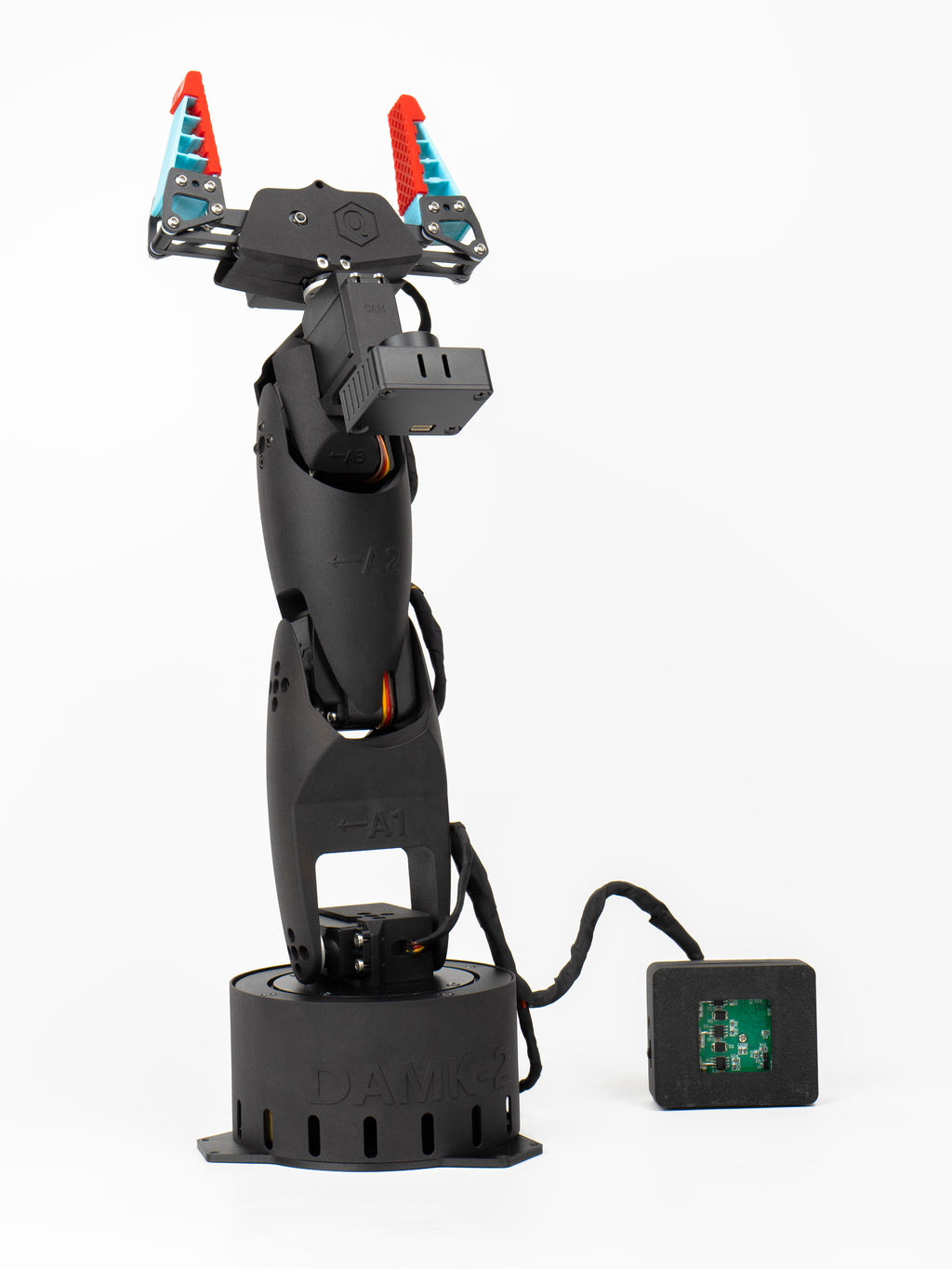

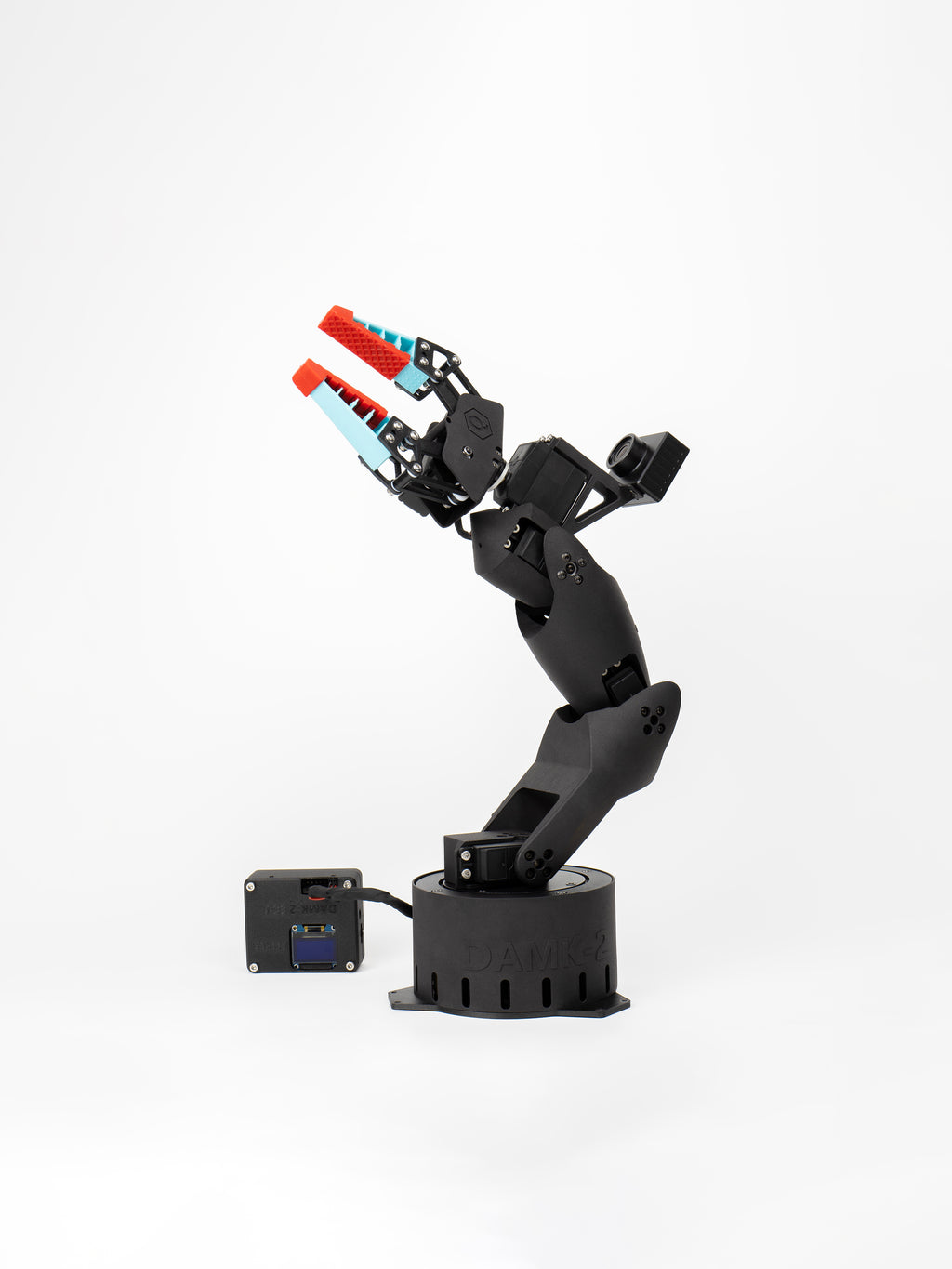

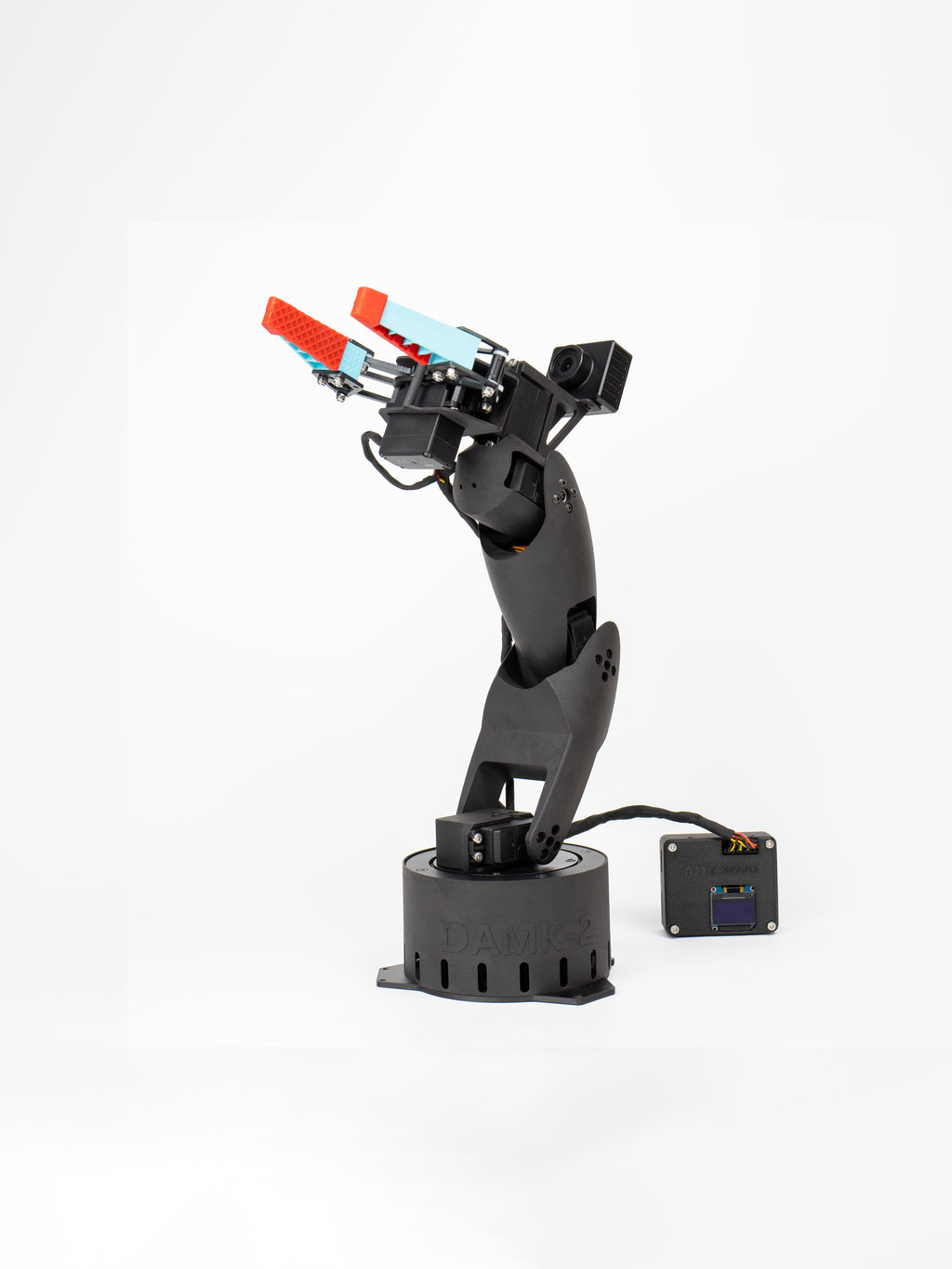

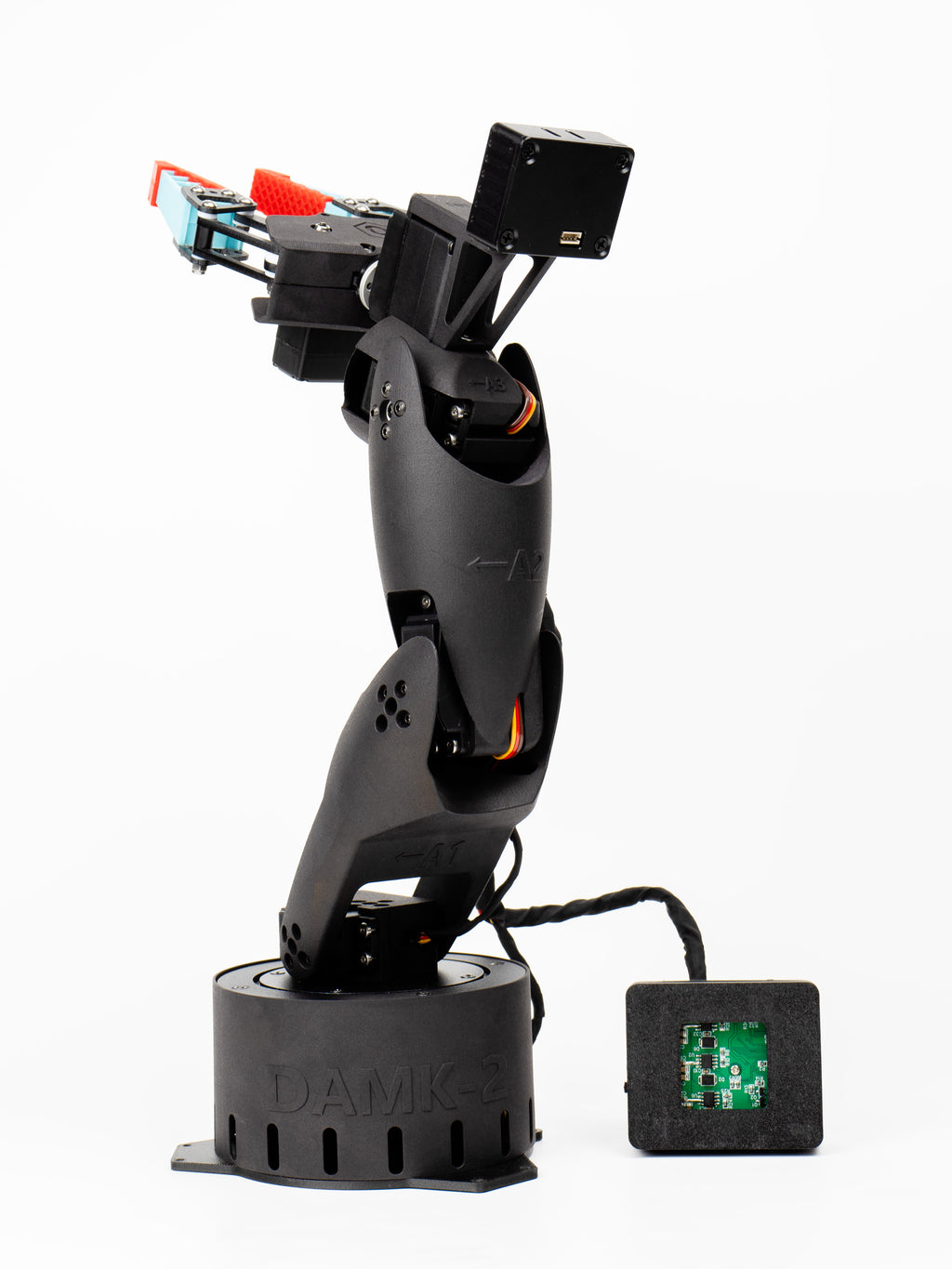

FPV HD Vision Robotic Arm DAMK-2

The DAMK-2 is an intelligent vision robotic arm integrated with a 720P HD FPV camera, designed for robotics enthusiasts, education, research, and creative projects. It features a high-performance STM32 master controller and high-torque digital servos, delivering a remarkable grasping capacity of up to 300g. Supporting various control methods including APP, PS2 wireless controller, CAN bus, and serial communication, it comes pre-installed with Ubuntu and ROS Melodic. Its open SDK makes it an ideal platform for learning robot vision, motion control, and AI applications.

Product Parameters
-Model: DAMK-2
-Master Controller: STM32F103C8T6
-Actuator Servo: S20F High-Torque Digital Servo
-Vision System: 720P HD Camera, Metal Housing, Manual Focus
-Dimensions: 275mm × 160mm × 483.34mm
-Net Weight: 1.6kg
-Payload Capacity: 200g - 300g

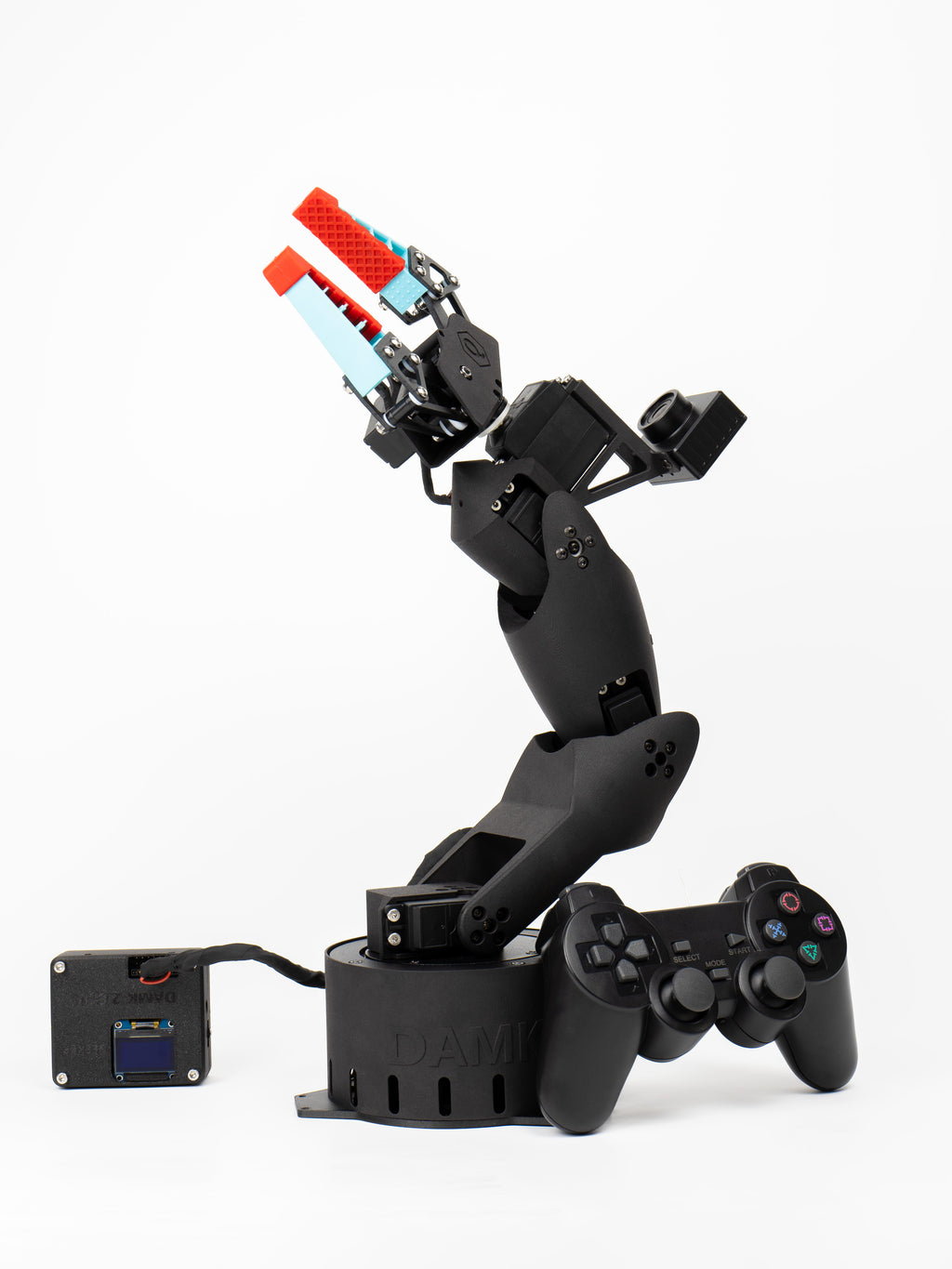

-Control Methods: Mobile APP, PS2 Wireless Controller, CAN Bus, Serial Command
-Operating System: Ubuntu 18.04 with ROS Melodic
-Communication Interface: CAN Bus, UART, for communication with external controllers (e.g., Raspberry Pi, Jetson Nano)

Applicable Scenarios
-Education & Research: Ideal for robotics courses, ROS learning, algorithm development, and verification in universities and colleges.
-Creative Development: Perfect for geek DIY, maker projects, intelligent grasping, and automated scenario construction.
-Technical Pre-Research: Provides a low-cost, high-efficiency Proof of Concept (PoC) solution for applications like industrial visual sorting and automated testing.
-FPV First-Person View Entertainment: Offers an immersive FPV操控experience through the camera for interactive displays and entertainment.
