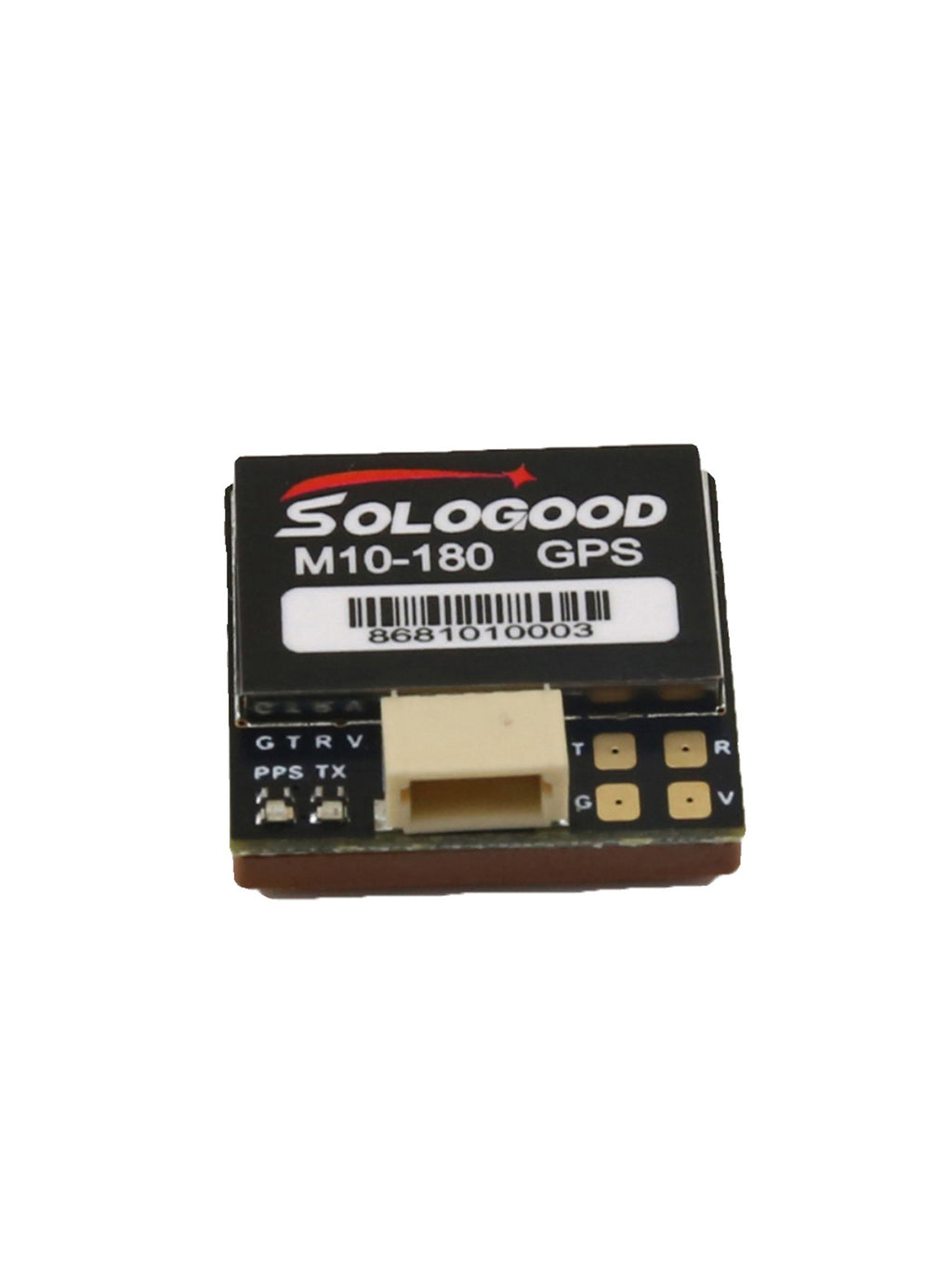

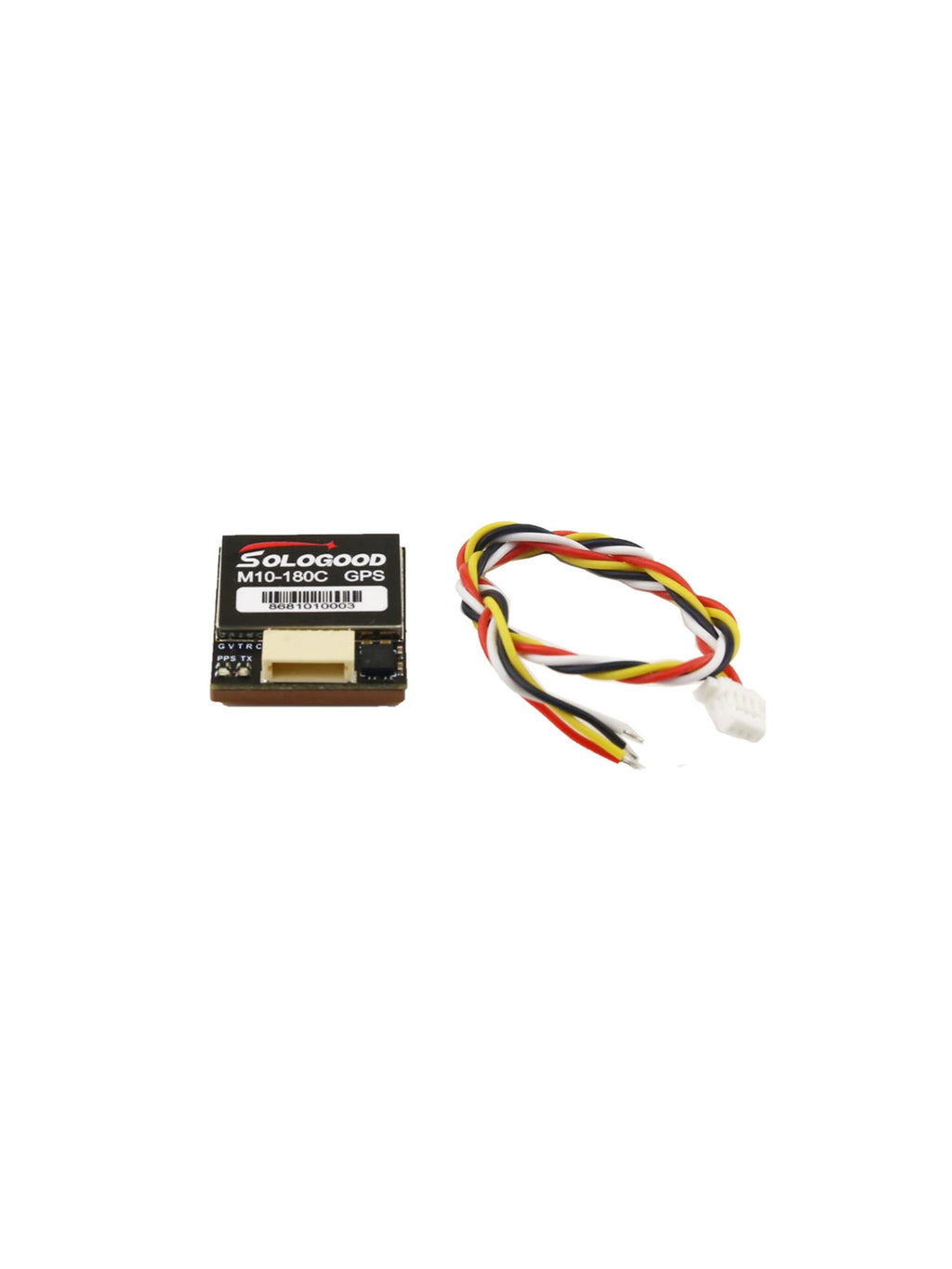

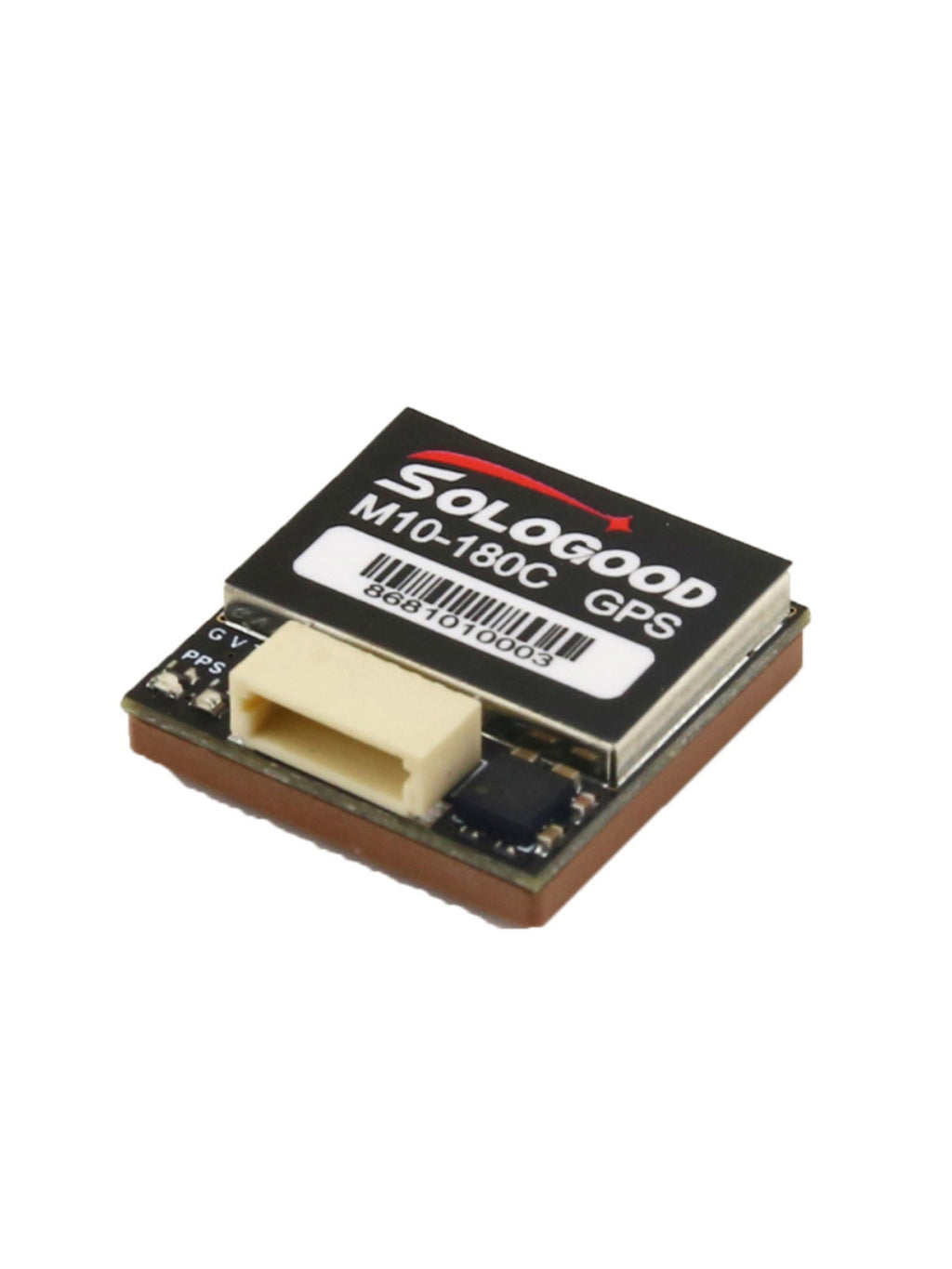

Drone Accessories - GPS M10-180C

Model Number：M1018/M1018C
Satellite Receiver：UBLOX-M10
Satellite System：GPS L1 C/A, GLONASS L10F, BeiDou B1/IB1C, Galileo E1B/C, QZSS L1 C/A/S, SBAS L1 C/A
Number of concurrent satellites：3
Maximum Navigation Update Rate：10Hz
Maximum number of navigation satellites：32
Positioning accuracy (ideal environment)：1.5m CEP
Start-up speed (ideal environment)：Cold start 26s, Hot start 1s
Sensitivity：Tracking & Navigation: -167dBm, Recapture: -160dBm, Hot Start: -159dBm, Cold Start: -148dBm
Hot Start Support：With backup battery, support hot start
Serial Baud Rate：4800-921600bps, default 115200bps
Output Level：3.3V TTL level
Output Protocol：NMEA, UBX
FLASH：On-board FLASH, configuration can be saved after modification, no loss after power failure
Height limitation：<50000m
Speed limitation：≤500m/s
Acceleration limit：≤4g
Operating Voltage：DC 3.6-5.5V, typical value 5.0V
Working Current：35mA@5V
Antenna Size(mm)：18×18×2mm / 18×18×2 / 12×12×2 / 25×25×4
Product Size(mm)：18×18×6 / 18×18×6 / 12×16×5 / 25×25×8
Product weight(g)：4.5g / 4.5 / 2.5 / 11.5
Connector：SH1.0-4P / SH1.0-6P / Pad-6Pin / SH1.0-6P
Operating Temperature：-40°C ~ +85°C
PPS Indicator：Power on blue light always on, blinking after 3D position
TX Indicator：Power on send number of TTL data blinking

Minimum order quantity（MOQ）: 1000
