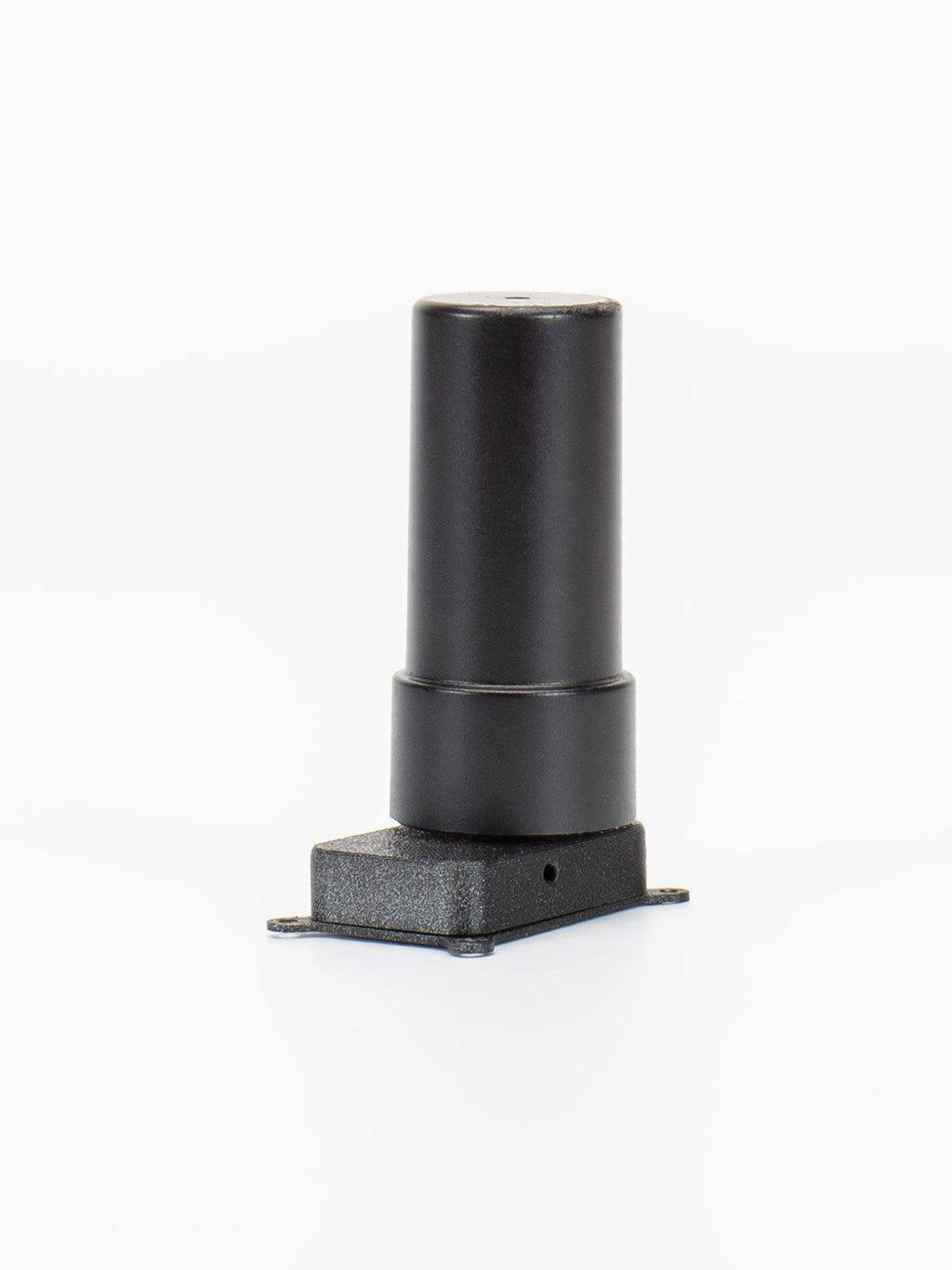

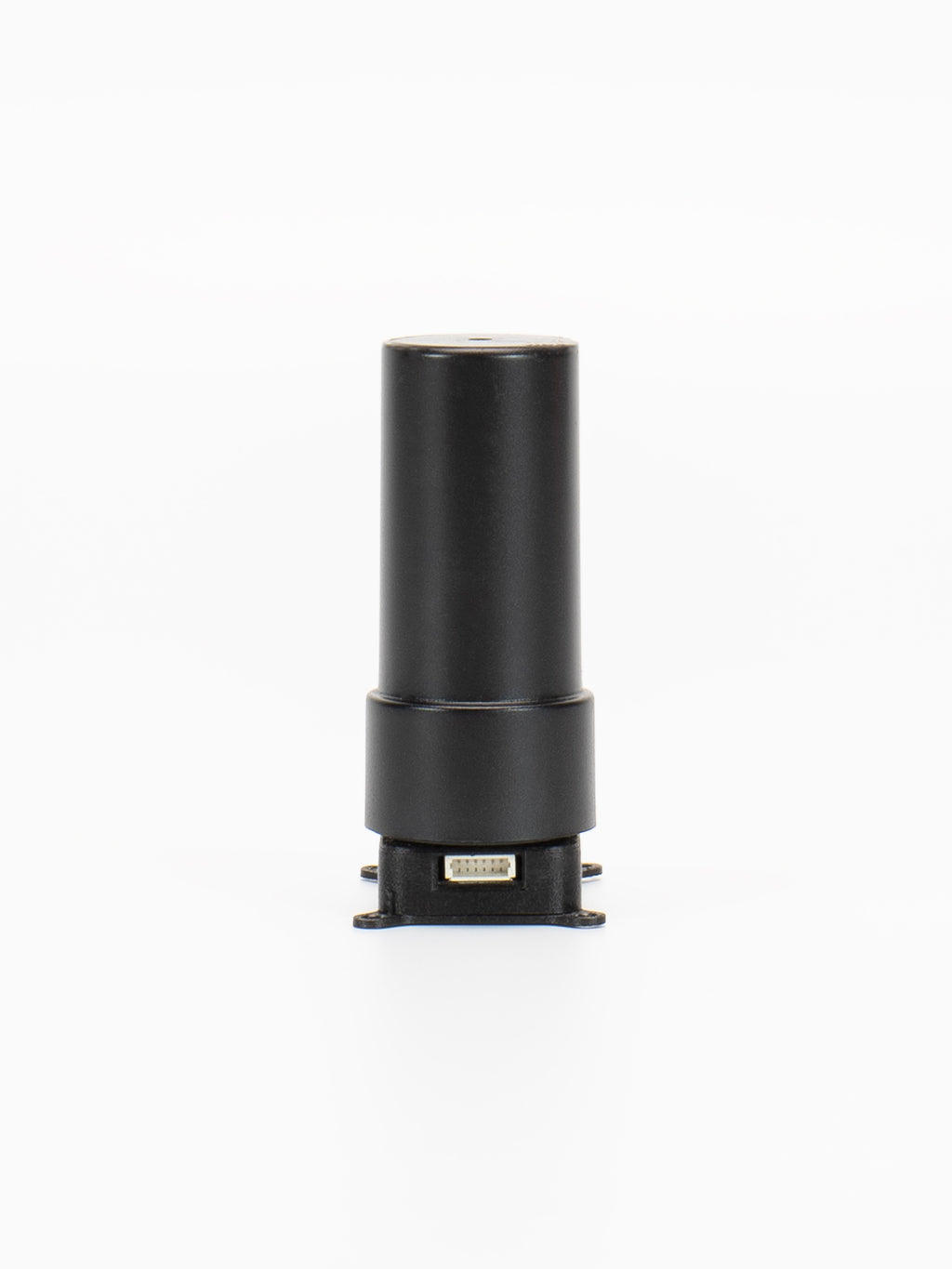

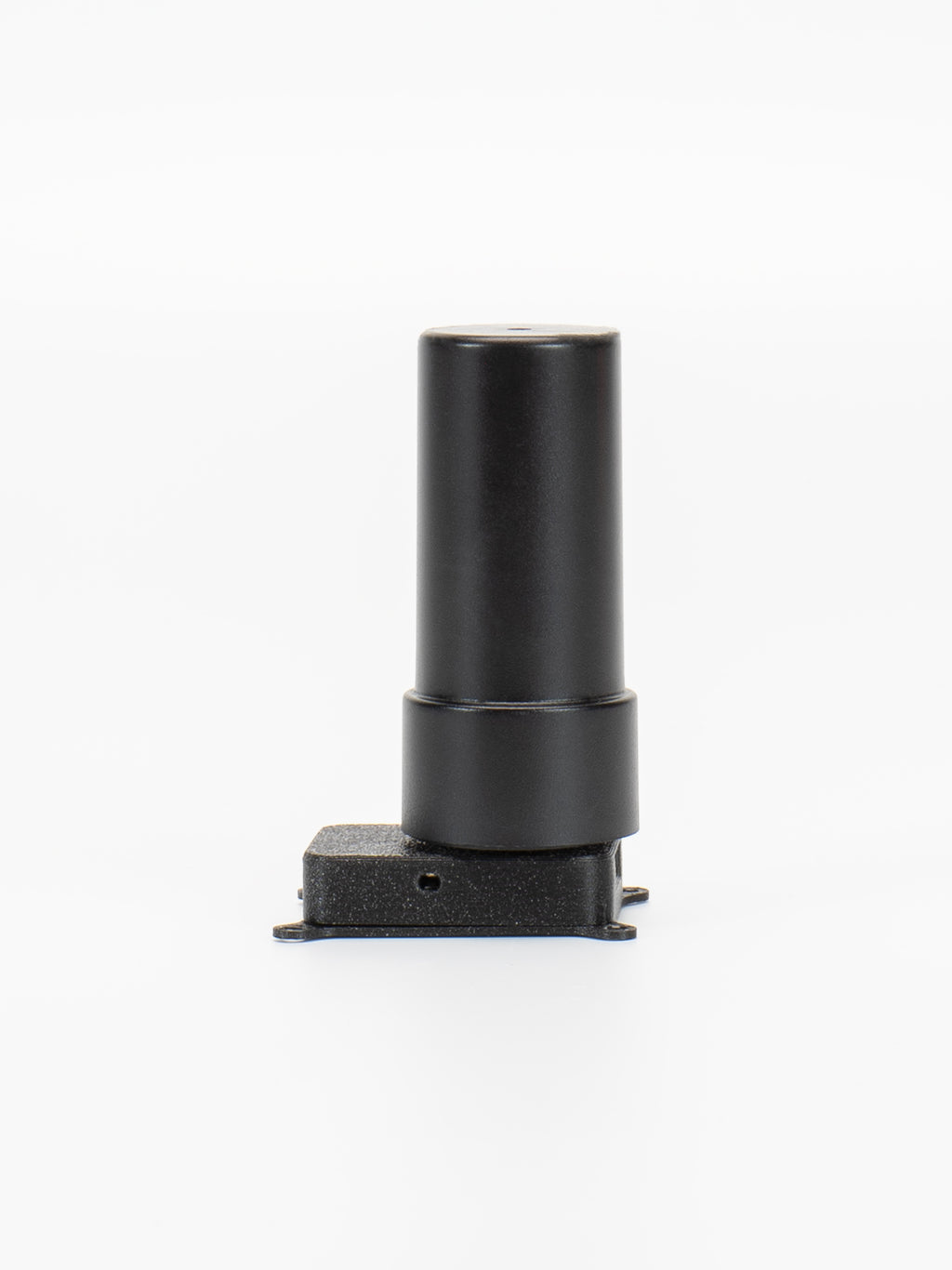

Drone Accessories - Dual-band GNSS Module L1+L5 Sub-meter Positioning Module

Model: MG-F10
Module Type: GPS + Beidou
Positioning Accuracy: 1.0m
Velocity Accuracy: 0.05m/s
Hot Start Acquisition Time: 2 seconds
Cold Start Acquisition Time: 28 seconds
Module Composition: F10 Module + L1/L2/L5 Quadrifilar Helix Full-band Antenna
Positioning Support: GPS/Beidou/Galileo/NavIC Four-System Concurrent Joint Positioning, L1 (1576MHz) + L5 (1176MHz) Dual-band Satellite Search and Positioning
Compass Sensor: IST8310
Module Dimensions: 22×34×13.4mm
Applicable Scenarios: Drone Positioning

Pre-purchase Note:
The MG-F10 Dual-band GNSS Module has been adapted for ArduPilot and PX4 flight controller firmware. It can be automatically recognized and used by connecting it to the flight controller with the appropriate wiring sequence (no need to adjust parameters such as baud rate). The flight controller firmware must meet version requirements; otherwise, it may not be recognized (ArduPilot ≧ 4.4.0; PX4 ≧ 1.14.0). This module is only suitable for ArduPilot and PX4 flight controllers. It has not been tested in other scenarios, and no related support will be provided. Users are solely responsible for any consequences resulting from unauthorized modification of the module parameters.
